GET THINGS MOVING WITH THE TELESCOPIC CONVEYOR

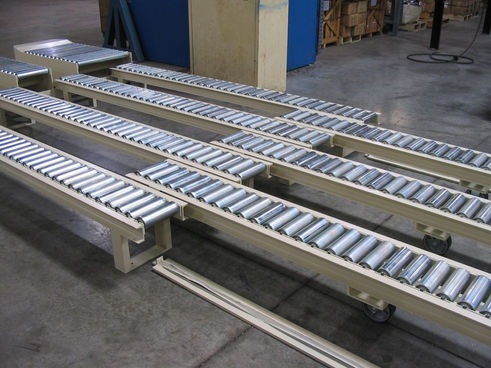

The Telescopic Conveyor is an adjustable conveying section that can be positioned where product transfer or operator access is needed. The extension allows the conveyor end to be moved in relation to the work area for convenience and safety. The TEL has floor anchored sections with moveable “fingers” mounted on casters for smooth positioning.
SPECIFICATIONS:
Sideframe | Channel or angle |
Between Frame Dimension | Channel: 60” – 180” Angle: 30” – 180” |
Lengths | Channel: 84” – 120” collapsed, 156” – 228” open Angle: 60” – 120” collapsed, 168” – 228” open |
Top‑of‑Roll Height | 12” T.O.R. |
Load Capacity | 3,500 lb/unit |
CONSTRUCTION:
Frame | All‑welded steel construction |
Channel | 5” dia. x 2” face fixed caster 2” dia. x 1 5/16” tapered nylon roll‑out wheels |
Angle | Steel V‑grooved wheels for mobile sections inverted angle on‑floor tracks |
SAFETY FEATURES:
Frame | Angle steel end guard Floor lock to ensure stabilization of mobile sections Safety label cautions and warnings |
