KEEP THINGS MOVING WITH THE RAVEN

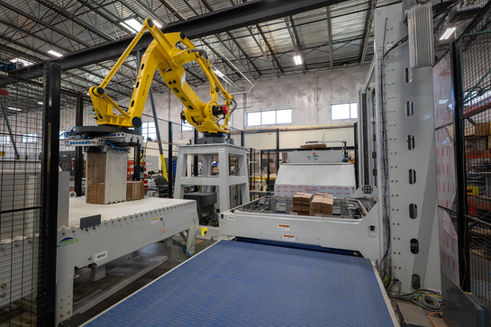

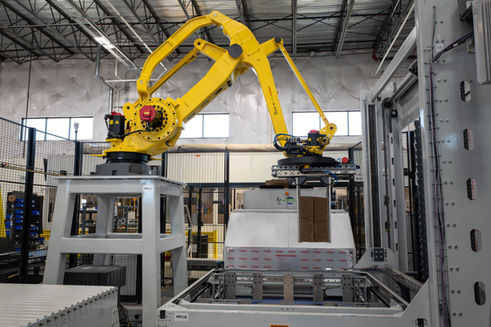

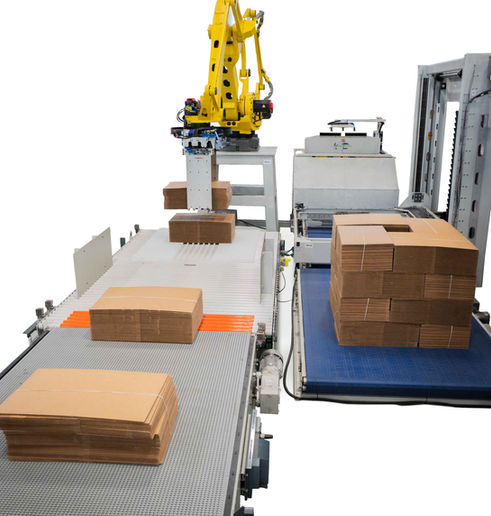

The RAVEN automatically builds patterned units from bundles. Individual or doubled bundles are grasped by the EOAT and positioned in the desired pattern onto the floor conveyor. As each layer is built the stack squaring unit squares each side of the layer, squaring every layer until the stack is complete. Once the stack is complete and exits, the robot begins the next stack.

THE RAVEN IS DESIGNED TO FIT YOUR 50 IN FLEXO WITH:

• Compact design allowing smoother line integration

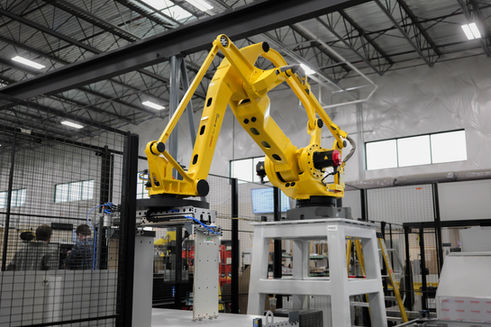

• High-speed continuous bundle stacking with FANUC robotic arm

• Automated bundle doubling

• Automatic tie sheet & bottom sheet placement

• Automated squaring system to ensure each layer is perfectly aligned

• No-pit design with full personnel fence and light curtain

• Touch screen operator station with PLC-based controller

• On-screen diagnostics

• Digital operating manual stored in HMI (Human Machine Interface)

• Automatic set-up for ease of use
