KEEP THINGS MOVING WITH THE RAPTOR XR

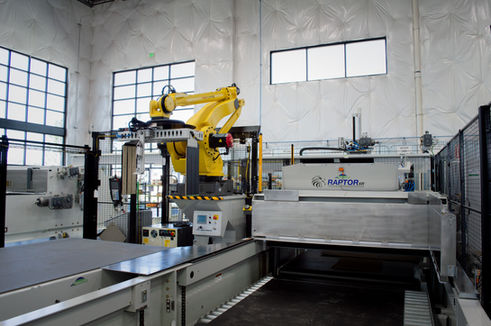

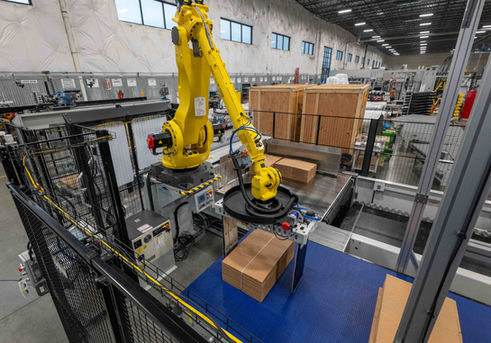

The RAPTOR automatically builds patterned units from bundles. Incoming bundles or bundle groups are grasped by the EOAT and positioned in the desired pattern onto the stripper plate of the Modular LOADMASTER. The stripper plate cycles normally to place the layer on the load and when the required layer count is reached, the load discharges automatically in the pit as the next load is built. The RAPTOR produces superior load quality and can automatically insert both tie sheets and bottom sheets. The system sets up automatically, providing operators with more time for quality control.

FEATURES:

• Advanced vision system for bundle detection

• Automated tie-sheet and bottom sheet placement systems

• Robotic arm & EOAT with 180 degree rotation allowing a variety of stacking patterns

• 3-zone accumulating indexing conveyor

• Automated bundle doubling

• Zero-energy electrical and pneumatic lockouts

• Ability to be run manually with an operator for added flexibility

• Interruptible upstream doubling for additional productivity

• Right-hand or left-hand machine options
