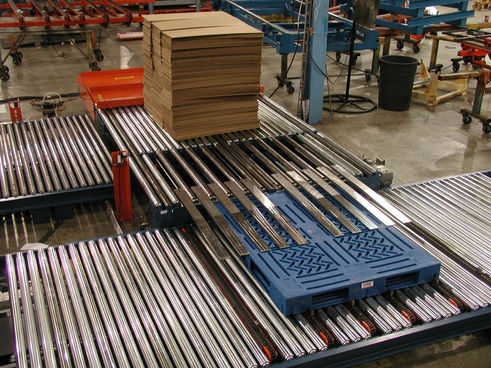

GET THINGS MOVING WITH THE PALLET LOADING DEVICE
The patented Pallet Loading Device (PLD) automates the process of placing a load on a pallet. The PLD acts as a high‑speed small‑footprint palletizing operation, centering loads and placing them on pallet, up to 90 units per hour. This is a “pit‑less” system and requires a minimal amount of floor space. The PLD system is comprised of the pallet loader and a small self-contained conveyor. Includes heavy gauge steel pusher head with six trolley assemblies.
SPECIFICATIONS:
Between Frame Dimensions | 72”, 84”, 96” |
Lengths | 7’, 8’, 9’ |
Top‑of‑Roller Height | 12” T.O.R. to 18” T.O.R., adjustable |
Drive Capacity | 3,500 lb/unit |
Conveyor Speeds | 45 – 90 FPM |
Cycle Rating | Up to 90 loads per hour |
Air Requirement | 80 PSI |
Hydraulic Package | 10 GPM variable volume pump 30 gallon reservoir 10 HP motor |
CONSTRUCTION:
Frame | All‑welded steel construction |
Pusher Head | Heavy gauge steel with six trolley assemblies |
Fork Extension | 1” x 3” tapered, hardened steel |
Safety | Guarding on all moving parts, with toe‑guard feature surrounding all exposed areas of the lifting device |
CONTROL OPTIONS:
Automatic | Automatic operation available |
Manual | Pushbutton operation available |
PALLET SIZES:
Width | 48” *Pallets wider than 48” won’t have full coverage of forks |
Length | Dependent on load and head size |
Height | 5.5” – 6.5” |
Maximum Height of Product | 60” |
