GET THINGS MOVING WITH THE LOAD CENTERING DEVICE

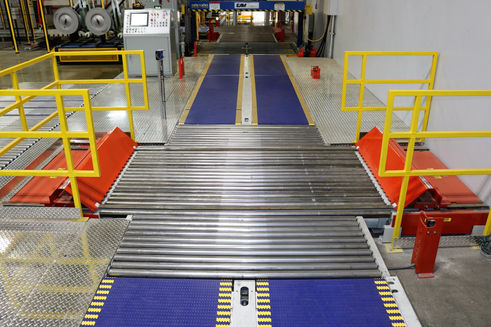

The Load Centering Device automatically squares and centers product within the conveyor line.
Centering heads move to push product into the center of the conveyor, the scalloped head, and specific bends, scoop underneath the bottom dunnage sheets. As the load is pushed to center, the heads then actuate upward, bending the bottom dunnage for the load banding. An adjustable variable frequency drive senses the pressure applied and when the load is sensed to be centered, it reverses the heads to the home position.
SPECIFICATIONS:
Between Frame Dimensions | 96”, 120” (96” with dual 12” gravity sections) |
Device Lengths | 5’ |
Top‑of‑Roller Height | 12” T.O.R. Standard (heights over 12” available) |
Drive Capacity | 3,500 lb/unit |
Device Speeds | 30, 40, 60 FPM |
Motor/Drive Package | Flange mounted gearbox, 1 HP motor, 230/460 volt, 3‑phase, 60 Hertz, standard |
CONSTRUCTION:
Frame | All‑welded steel construction |
Fold‑Up Head | Laser cut and precision bent with under‑load scallops |
Head Rail | 2” solid t‑rail |
Head Trolley | Dual 2 1/2” diameter wheels with 1.2” cam followers |
Drive Chain | #50 heavy duty chain |
Tension Cable | 13 strand woven cable with swedge fit threaded ends |
Sprocket | 1” diameter x 1” hardened steel |
Sheave | 6 1/8” diameter x 1” hardened steel |
Drive Shaft | 1 3/8” diameter |
CONTROL OPTIONS:
Automatic | Positioning controls with electro‑mechanical sensor Actuation |
Manual | Pushbutton operation |
