GET THINGS MOVING WITH THE e-SBF

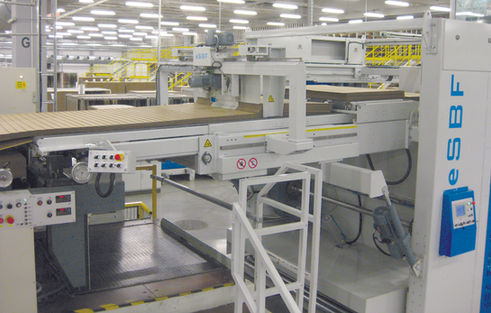

The Electric Special Block Feeder (eSBF) is an automatic Prefeeder suited for feed bottom printing and upfolding machines. It receives each time one stack, with or without pallet, from a floor conveyor.

The eSBF is completely Electric/Pneumatic machine.

FEATURES:

• Two user-friendly control stations for fully automatic operation

• Manual & automatic control over all axis

• Powered adjustment of extendo length to accommodate different sheet lengths

• Waste sheet ejection

• Optical sensors

• Quick set-up and install

• Emergency stop contacts to and from all additional equipment such as converting machine and infeed conveyor

• Potential free contact to call a new stack into the feeder

• Frequency controlled extendo conveyor

• Smaller footprint

• CE approval

• Fully automatic operation

SPECIFICATIONS:

• Floor conveyor height from 300 to 400 mm

• Stack heights from 300 to 2400 mm (incl. pallet)

• Maximum stack weight 2750 Kg
