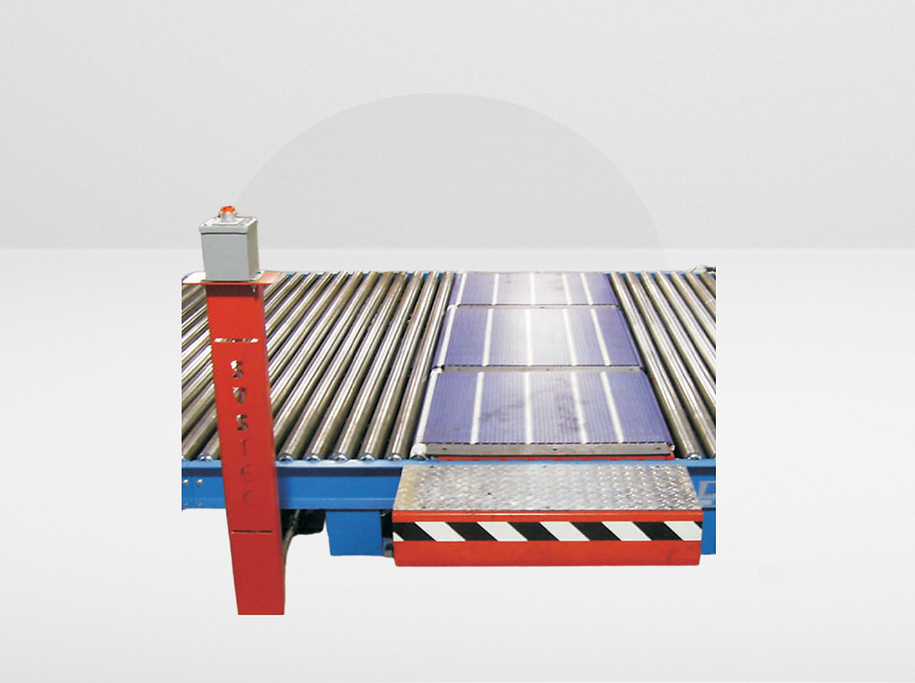

GET THINGS MOVING WITH THE CONVEYOR SAFE WALK
The Conveyor Safe Walk replaces a traditional walk plate to provide a safe, stable crossing point over active conveyor lines. The CSW operates independently and can be installed directly into new or existing conveyor systems, regardless of manufacturer.
Safe operator crossing over active conveyor lines
Reduces risk of roller-related falls
Compatible with new or existing conveyor systems
Independent drive design for flexible installation
30” nominal width to fit OSHA safe walkway requirements
SPECIFICATIONS:
Between Frame Dimensions | 48”, 60”, 72”, 84”, 96” |
Device Length | 30” |
Top‑of‑Roller Height | 12” T.O.R. (heights over 12” available) |
Conveyor Speeds | VFD for customizable speed |
Motor | Phase 60hz with VFD |
Air Requirements | N/A – Unless additional controls are required |
CONSTRUCTION:
Frame | Laser cut and welded steel construction |
Belt Guide | Screw mounted UHMW I |
Belt | 3 rows, plastic link chain |
Shaft | 3/4” diameter common drive shafts |
Bearing | 3/4” diameter, pillow block |
CONTROL OPTIONS:
Options | Cross-over is kept open to allow for immediate passage. Pushbutton will cause unit to stop, and upstream loads will be held. Formed stair step (2) steel frame with aluminum tread plates Other control options to manage load separation are available. |
