GET THINGS MOVING WITH THE BELT TRANSFER DEVICE

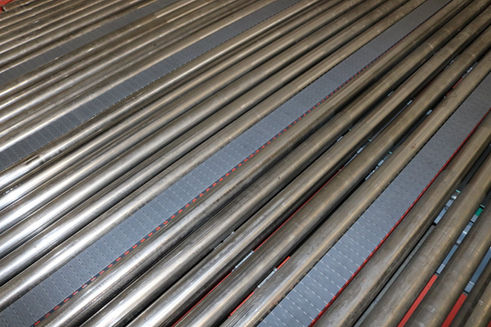

The Belt Transfer Device provides a smooth transition between conveyor sections while helping protect the bottom of the product. The flat belt transfer device is independent of the conveyor and can be moved to multiple locations on a line. The BTD can be installed on most conveyor lines, regardless of manufacturer. BTD can function as an intersection, allowing products to be routed in several directions, including up to a four-way transfer.
SPECIFICATIONS:
Between Frame Dimensions | 60”, 72”, 84”, 96” |
Diameter | 5’ - 8‘ on 1’ increments |
Top-of-Roller Height | 12” T.O.R. standard (heights over 12” available) |
Drive Capacity | 3,500 lb/unit |
Conveyor Speeds | 30, 45, 60 FPM |
Motor | Flange mounted, ¾ HP, 230/460 volt, 3-phase, 60 Hertz, standard |
Air Requirement | 80 PSI |
Belt Bar Mounting | TELESPAR Tube, 1” Adjustability (3” for roller centers) |
CONSTRUCTION:
Belt Bar | Laser cut and welded steel construction |
Belt Guide | Rivet mounted UHMW plastic chain rail |
Belt | 2 1/2” wide, plastic link chain |
Idler Sprocket | 15 tooth, nylon, plain bore |
Shaft | 1” Diameter common drive shaft |
Bearing | 1” Diameter, Sealed-for-life, flange mount |
CONTROL OPTIONS:
Automatic | Positioning controls with electro‑mechanical sensor actuation |
Safety Controls | Automatic collision safety |
Priority Entry | Automatic load entry from perpendicular conveyor |
Manual | Pushbutton operation |
