KEEP THINGS MOVING WITH THE ULTRAFEED

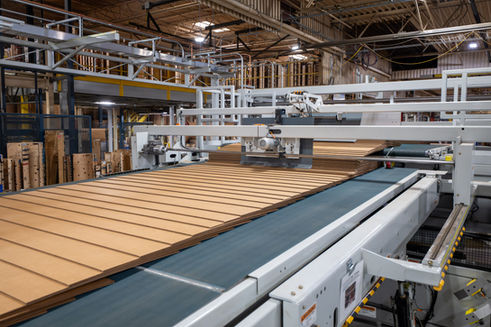

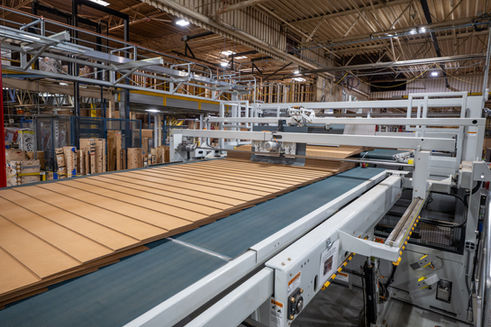

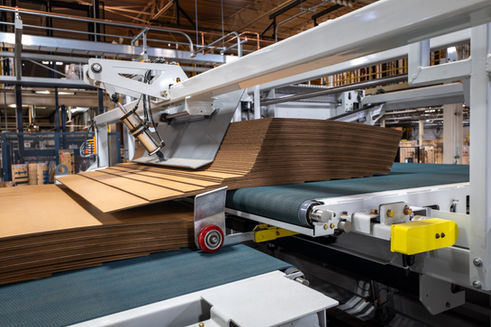

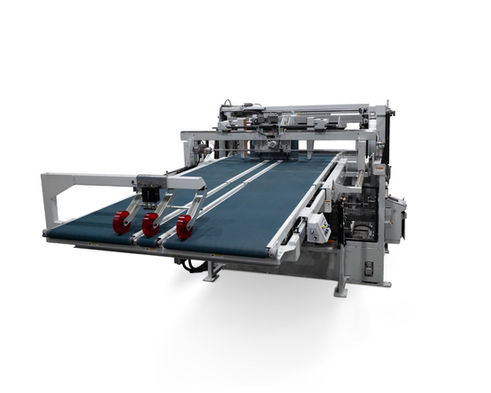

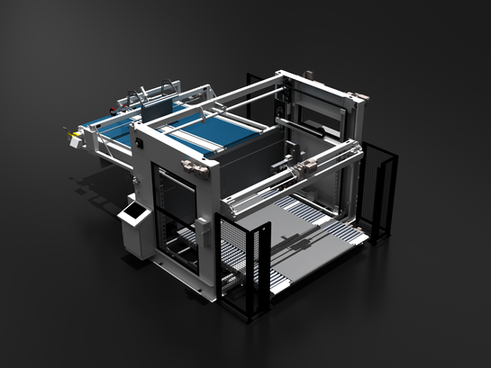

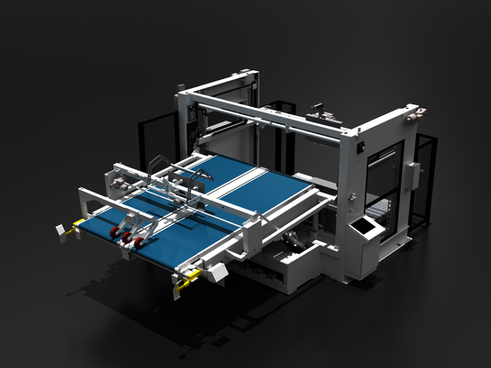

The UltraFEED is designed to handle blank sheets of corrugated material. It receives a stack of material, lifts it up, divides it into measured blocks, optionally inverters the block of material and then feeds sheets off the bottom of the block under a vertical stop, creating a shingled stream of material on the extendo or continuous shingle module for delivery into the finishing machine hopper.

FEATURES:

• Quieter and smoother, the new electric system reduces machine noise significantly

• Stack acceptance up to 72” tall (optional 90” available)

• Automatic stack centering to align incoming stacks (+/-12”)

• ActiveTrak® belt tracking system to keep lift and separation conveyor belts on center

• Patented floating block pusher that cleanly separates blocks from the stack

• Waste sheet removal system

• Four configurations, continuous shingle, block-staging, inverting, and standard

• HMI (Human Machine Interface)

• Easy order retrieval and setup with AutoSet

• Automatic 4 pin lockout

• Patented automatic warp compensation

• Easy-lift extendo tilt and extension system with mechanical safety lockouts

• Secondary extendo control panel at downstream end of extendo

• Operation and set-up are 100% electric and pneumatic with the only remaining hydraulic axis with 19 gal on-demand power unit

One of a wide range of feeder models that integrate with top and bottom print in sizes from mini to jumbo
